Workflow Components

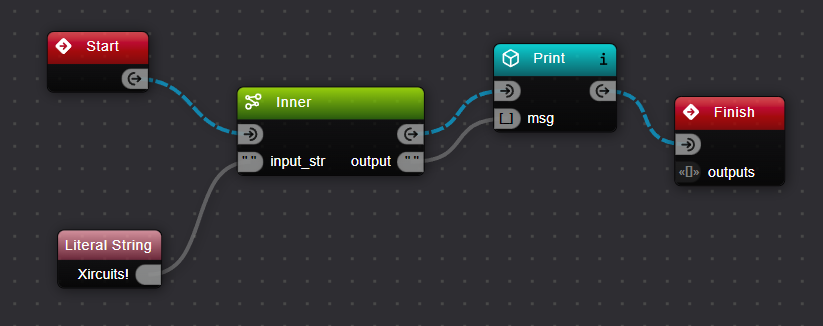

Workflow components are Xircuits workflows designed to be reusable within other workflows by accepting values and passing the results to an outside workflow.

Workflow Components

info

When a workflow is compiled, the @xai_component(type='xircuits_workflow') type decorator is added. This type decorator ensures that the compiled workflow is recognized as a workflow component. Here is an example of how it is applied:

Example Code Snippet:

Code Snippet

@xai_component(type='xircuits_workflow')
class Inner(Component):

    def __init__(self):
        super().__init__()
        self.__start_nodes__ = []
        self.c_0 = Print()
        self.c_0.msg.value = 'Hello workflow component!'
        self.c_0.next = None

    def execute(self, ctx):
        for node in self.__start_nodes__:
            if hasattr(node, 'init'):
                node.init(ctx)
        next_component = self.c_0
        while next_component is not None:
            next_component = next_component.do(ctx)

Requirements

• Library must be inside the xai_components directory.
• Library directory must have the xai_ prefix.
• Library must have a __init__.py for Python to recognize it as a package.
• The .xircuits workflow file must be compiled into a python file first.
• The compiled workflow must be in the library directory, eg xai_components/xai_yourlib/compiled_workflow.py. If it is in another child directory, the tray will not pick it up as a valid component.

Passing Parameters

Workflow components can accept parameters and return results.

• Connected Argument components will become the workflow component's inPorts.
• The connected outputs to the Finish component outputs will be the workflow component's outPorts.
• If you require passing data that is not a common type, use the Literal Any component.
• You will need to save and compile the original workflow first, then if it is already in another workflow, you'll need to reload it.

Reminders

• Workflow components must be saved and compiled in a valid component library path to be recognized.
• Ensure correct setup of the directory and naming conventions for successful component creation and usage.

For a tutorial on how to use workflow components, you can refer to the workflow component tutorial.
