Using Variables
If you would like to manage variables within your workflows, variable components are what you need. The controlflow component library provides three components that function like Python variables:
SetVariableComponent
GetVariableComponent
DefineVariableComponent
Steps to Use Variable Components
Using Variable Components
is simple:
- Drag a
SetVariableComponent
onto your canvas. Define the variablename
andvalue
. - To access the variable, use
GetVariableComponent
, specify the variable by thename
, and retrieve the value via itsvalue
outPort. - If you want to immediately use the value, you can use the
DefineVariableComponent
.SetVariableComponent
andDefineVariableComponent
are interchangeable in setting the variable value.

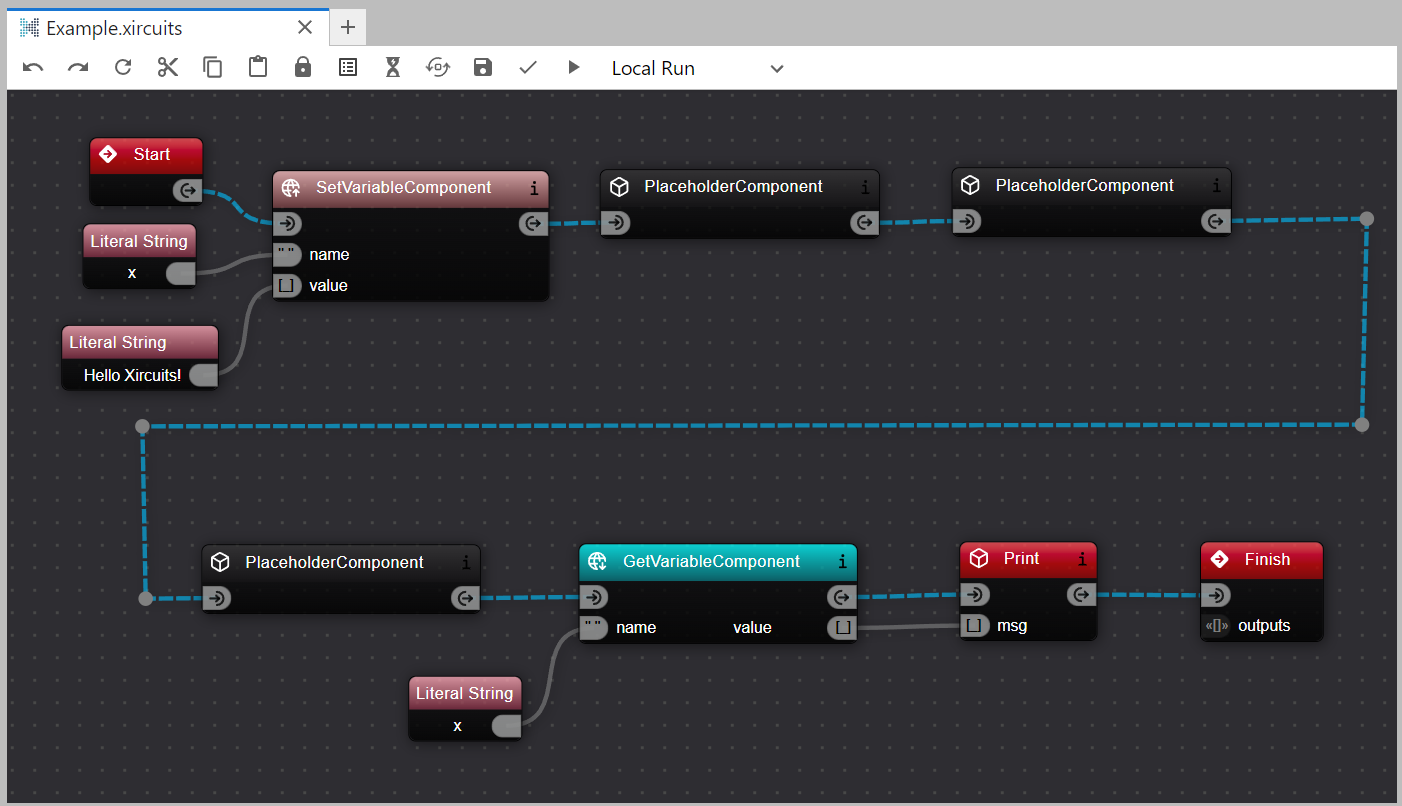

Consider the following workflow.
You can define a variable at any point of the workflow using SetVariableComponent
, and then retrieve the value at the end using GetVariableComponent
.
Expected Output
======================================
__ __ ___ _ _
\ \ \ \/ (_)_ __ ___ _ _(_) |_ ___
\ \ \ /| | '__/ __| | | | | __/ __|
/ / / \| | | | (__| |_| | | |_\__ \
/_/ /_/\_\_|_| \___|\__,_|_|\__|___/
======================================
Xircuits is running...
Executing: Example
Executing: SetVariableComponent
Executing: PlaceholderComponent
This is a placeholder component!
Executing: PlaceholderComponent
This is a placeholder component!
Executing: PlaceholderComponent
This is a placeholder component!
Executing: GetVariableComponent
Executing: Print
Hello Xircuits!
Finished Executing
Recommended Use Cases
You should use Variable Components when:
- You need a variable that changes. An example of this is controlling loops with Variable Components.
- You want to save a variable value into the Xircuits context.
Use Cases to Avoid
You could (but not really recommended) also do the following with Variable Components:
- Treat Variable Components as constants where you set the value with
SetVariableComponent
and fetch the value withGetVariableComponent
. - Use
SetVariableComponent
to store a reference from an outPort that is too far and retrieve it withGetVariableComponent
. - Use Variable Components to pass and access data in nested workflows.
A good Xircuits workflow is one that is understandable at a glance. While you might be tempted to use Variable Components everywhere as with a typical Python script, you might lose visibility compared to using the normal method.
Consider the case where you substitute the Literal Values with Variable Components, like in the following workflow:
As shown, using Literals allows you to keep track of what the Literal is connected to, and with one change, you can easily update the value across nodes. Substituting these with Variable Components means you'll have to ensure that you use the same variable names and might lose track of where the Variable Component is used.
While ultimately it is up to your Xircuiting style, we recommend using Variable Components sparingly and only when other methods are not feasible.
For more details on how Variable Components work under the hood, refer to the Variable Components documentation.
