The Component Library Tray is an essential part of the Xircuits interface, providing access to all available components for building your workflows. It consists of three main parts: the search bar, library context menus, and the components themselves.

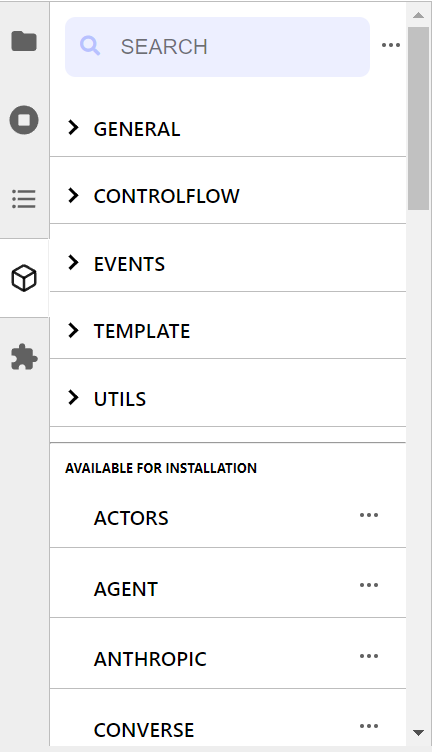

Xircuits Component Tray

Accessing the Component Tray​

You can access the Component Library Tray by selecting the block icon on the left toolbar of the Xircuits interface.

At the top of the Component Library Tray, you'll find a search bar that allows you to quickly find specific components. It searches both the component name and the component docstring, with component names taking priority.

Search Bar Context Menu​

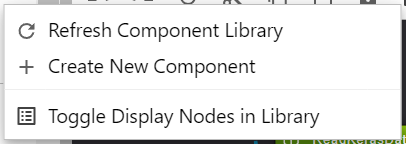

Main Context Menu

Next to the search bar, there's a context menu (accessible via the ... icon) with the following options:

  • Refresh Component Library: Updates the component list. Use this if you've edited components from an external text editor and the changes haven't been reflected in the component list.
  • Toggle Display Nodes in Library: Toggles the display of nodes in the library.
  • Create New Component: Initiates the process of creating a new component.

2. Components​

The Component Library Tray displays all available components, categorized into:

  • General Components
  • Library Components (Local)
  • Available for Installation (Remote Libraries)

Users can drag and drop these components into their workflow to build their Xircuits projects.

For local libraries, you can click on the library name to reveal the components within that library. Hovering over a component will display its docstring, providing quick information about its functionality.

For more detailed information on components and their usage, please refer to the Components documentation.

3. Library Context Menus​

Both local and remote libraries have their own context menus, accessible by clicking on the ... icon next to library names. For local libraries, this icon will appear after you expand the library name.

For Local Libraries:​

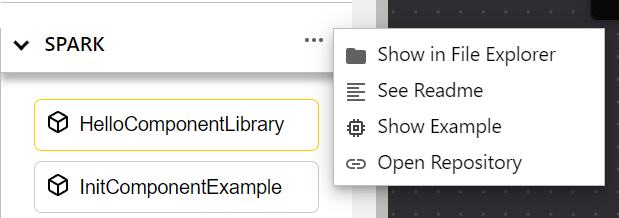

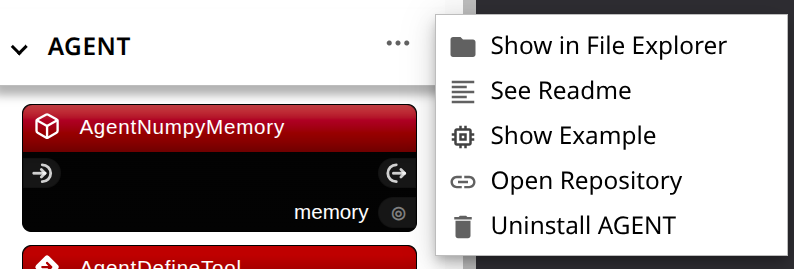

Local Library Context Menu

  1. Show in File Explorer: Opens the file browser at the location of the library.
  2. See Readme: Opens the library's README file in a markdown viewer.
  3. Show Example: Opens an example file for the library.
  4. Open Repository: Opens the library's repository in a new tab.

Note: The availability of these options depends on the library's configuration in its pyproject.toml file.

For Remote Libraries:​

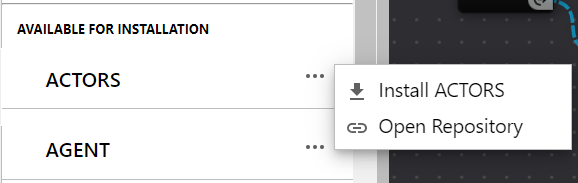

Remote Library Context Menu

Remote libraries are listed under the AVAILABLE FOR INSTALLATION header. Their context menu includes:

  1. Install [Library Name]: Initiates the installation process for the selected library.
  2. Open Repository: Opens the library's repository in a new tab (if available).

These features combine to make the Component Library Tray a powerful tool for managing and utilizing components in your Xircuits projects.

Troubleshooting​

  1. If you find that the Component Library Tray is empty, please check whether the .xircuits file exists in the base working directory. This file is crucial for the proper functioning of the Component Library Tray.

  2. If you've made a new local component library and it does not appear in the tray, ensure that you've properly followed the steps of creating a new library.

Technical Details​

For those interested in the technical aspects of how the Component Library Tray works:

[How it Works]

The Component Library Tray's contents are parsed from the component_library_config.json file, which is located in the .xircuits directory. This configuration file is generated from two sources:

  1. The .gitmodules file in the .xircuits directory
  2. Parsing through the xai_components/ directory, searching for pyproject.toml files

The component_library_config.json is updated in two scenarios:

  • When a component change is saved
  • When the "Refresh Component Library" option is selected from the context menu
