Node, Port, and Link Logic

To ensure robust codegen compilation, we have established several rules and logics for nodes, ports, and links in Xircuits.

Node Logic​

  • A node is a Xircuits component.
  • Each canvas has a Start and Finish node, which cannot be deleted.
  • Nodes can be locked, preventing movement or deletion.
  • All component library nodes must be linked to compile and execute a workflow.

Port Logic​

  • Each node has ▶ Ports and optionally parameter ports.
  • Parameter Ports are inArg and outArg rendered into inPorts and outPorts respectively.
  • Links can only be created from an outPort to an inPort.

Flow [ ▶ ] Ports​

  • Flow Ports indicate the sequence of execution.
  • All flow ports must be linked from Start to Finish.
  • Flow loops are not allowed.
  • Flow ports can only link to other flow ports, and parameter ports to parameter ports.

Compulsory Ports​

  • Compulsory inPorts are rendered inCompArg indicated with the * symbol.
  • A parameter must be supplied to compile and run the workflow.

Port Type Checking​

  • Ports may have specific expected types (e.g., str or int).

  • The any port bypasses type checking.

  • Port visualization for different data types:

    Data TypePort UI
    string" "
    int 1
    float1.0
    boolean⊤⊥
    list[ ]
    tuple( )
    dict{ }
    any[_]

Dynamic Ports​

  • Dynamic Ports expand dynamically when linked, while being treated as a singular variable in the compiled code.

  • Types: DynaList, DynaTuple

  • Linking to an empty dynaport spawns a new identical dynaport below it, with an updated [x] label.

    Preview

  • All Literals can link to DynaLists and DynaTuples.

  • Removing a link updates subsequent dynaports automatically.

  • Creating a link to an already linked dynaport shifts existing links and following dynaports.

    Preview

  • Dynaports inherit other default port behaviors, such as reloading.

  • Links are created by selecting and dragging from a port.

  • Linking an outPort to an inPort indicates data passing between components.

  • If a link is not dropped on a port, it prompts the component tray interface.

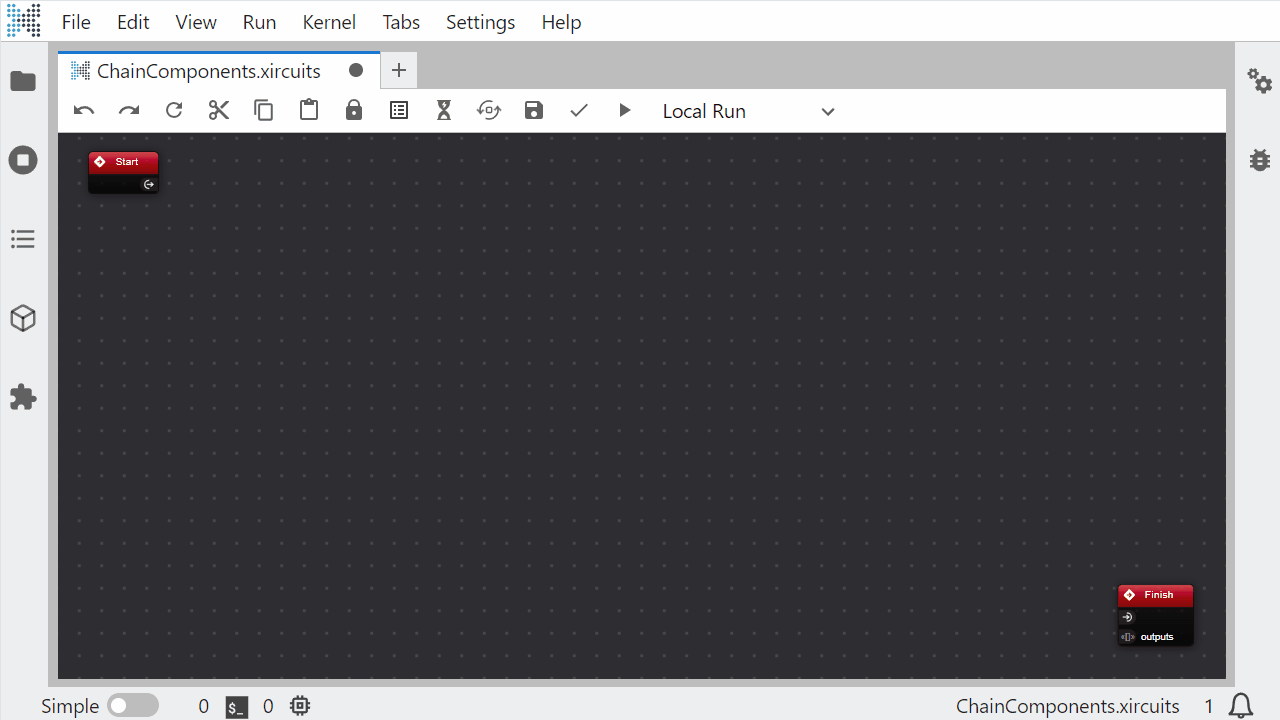

    Component Chaining Interface

  • If a link is not dropped on a port, it prompts the component tray interface.

  • You can create a point in a link by ctrl + clicking on a link. This will allow you to route links around components.

  • When linking ▶ ports, Xircuits checks for parameter port label intersections and attempts to link them automatically.

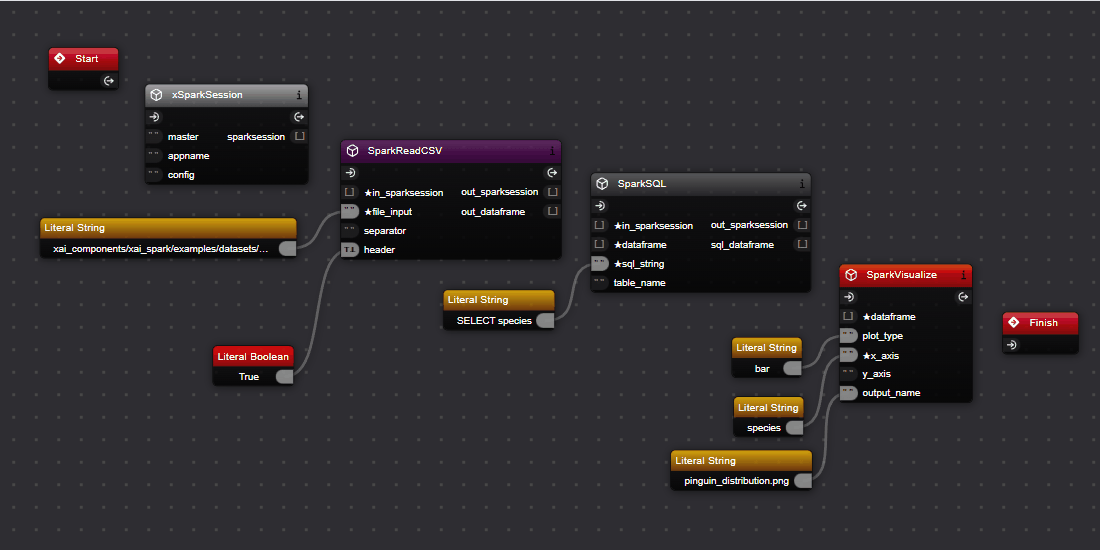

    Video: Interface Smart Link
